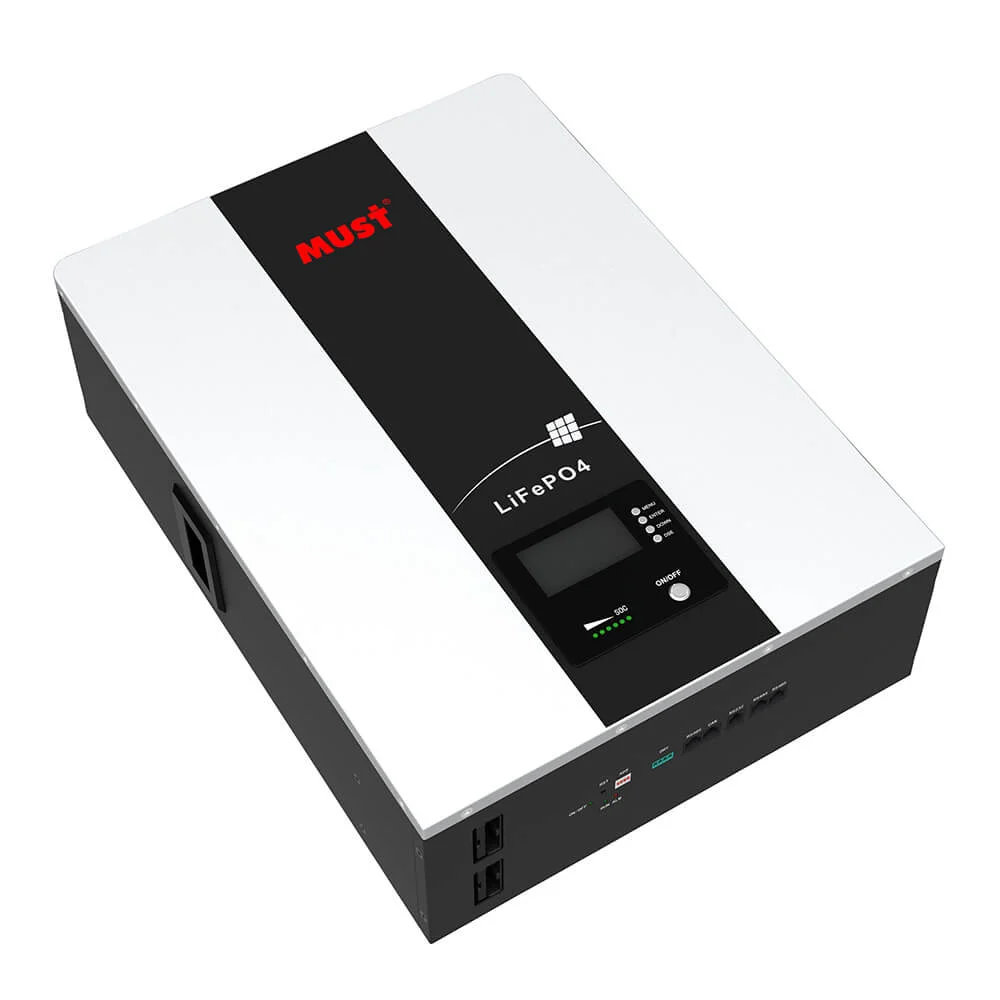

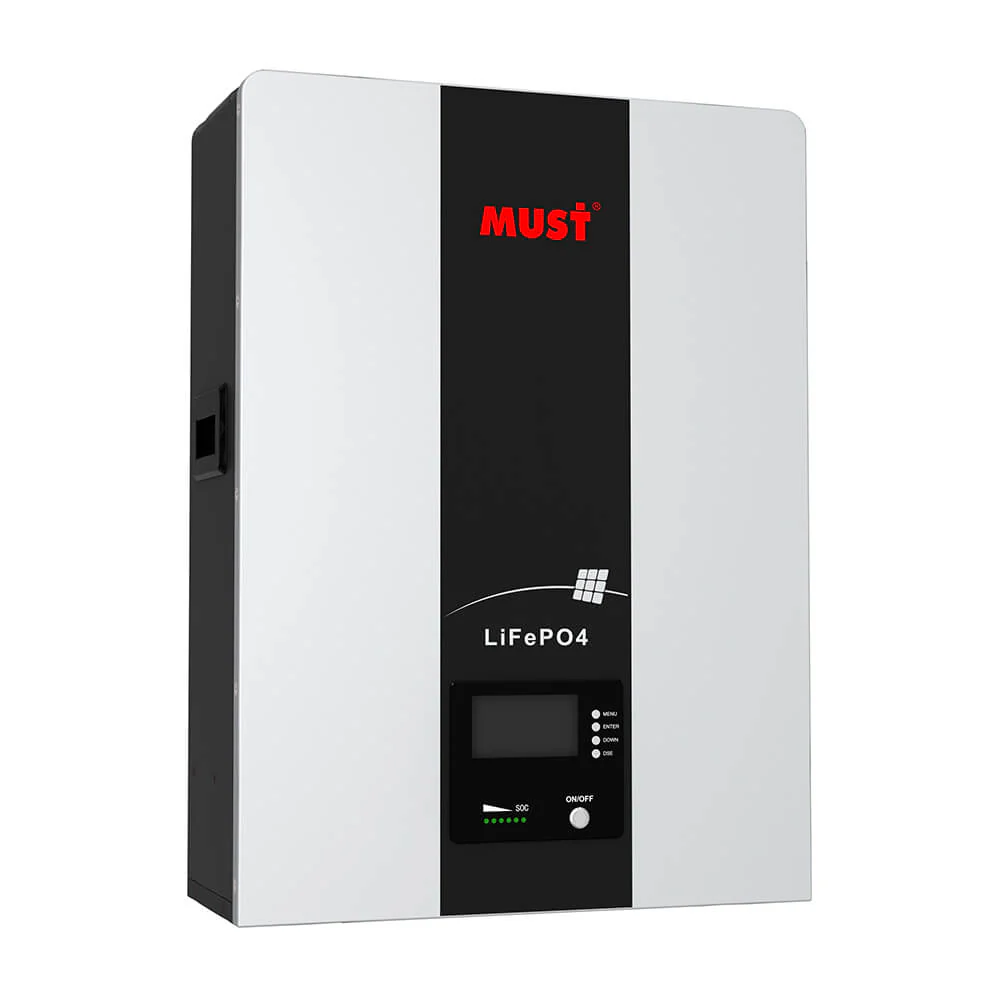

MUST Lithium Iron Phosphate Battery LP16-48100 (51.2V/100Ah)
MUST wall mounted Lithium battery (LiFePO₄ battery) solutions are highly integrated, deep cycle backup power solutions for your solar home energy storage system. With rich experience and advanced techniques, the product has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion.
Features:
- 6000 cycles @80% DoD for effectively lower total of ownership cost;
- Low maintenance batteries with stable chemistry;
- Battery Management System (BMS) is incorporated against abuse;
- up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation;
- Save time and increase productivity with less down time thanks to superior charge/discharge efficiency;
- Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C;
- Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
APPLICATIONS
Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.
Suitable applications include:
•Solar Storage
•Switching applications and more
•Base transceiver station
•Communication equipments
•Central office
•Telecommunication systems
•Electronic cash registers
•Microprocessor based office machine
•UPS
FEATURES & BENEFITS
High cycle life
6000 cycles @80% DoD for effectively lower total of ownership cost
Longer service life
Low maintenance batteries with stable chemistry.
Built in circuit protection
Battery Management System (BMS) is incorporated against abuse.
Better storage
up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.
Quickly recharge
Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.
Extreme heat tolerance
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.
Lightweight
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
CAUTIONS
•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Store at 30~50% SOC. Recharging every 3 months is recommended. The storage area should be clean, cool, dry and ventilated.
MODELLP16-48100Nominal voltage51.2VNominal Capacity100AhNominal energy5120WhLife Cycles6000 Cycles (25℃, 80% DOD)Recommended Charge Voltage57.6VRecommended Charge Current20.0AEnd of discharge voltage44.0VStandard methodCharge20.0ADischarge50.0AMaximum continuous currentCharge100.0ADischarge100.0ABMS Cut-Off VoltageCharge<58.4 V (3.65V/Cell)Discharge>32.0V (2s) (2.0V/Cell)TemperatureCharge-4 ~ 113 ℉ (0 ~ 45℃ )Discharge-4 ~ 131 ℉ (-20 ~ 55 ℃ )Storage Temperature23~95 ℉ (-5~35℃ )Shipment voltage≥51.2VModule ParallelUp to 4 unitsCommunicationCAN2.0/RS232/RS485Case MaterialSPPCDimension (L x W x H)580 x 400 x 145mm
22.8 x 15.7 x 5.7”Approx. Weight97lbs (44kgs)Charge retention and capacity recovery capabilityStandard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate≥90%, Recovery rate of charge≥90
MUST wall mounted Lithium battery (LiFePO₄ battery) solutions are highly integrated, deep cycle backup power solutions for your solar home energy storage system. With rich experience and advanced techniques, the product has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion.
Features:
- 6000 cycles @80% DoD for effectively lower total of ownership cost;
- Low maintenance batteries with stable chemistry;
- Battery Management System (BMS) is incorporated against abuse;
- up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation;
- Save time and increase productivity with less down time thanks to superior charge/discharge efficiency;
- Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C;
- Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
APPLICATIONS
Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.
Suitable applications include:
•Solar Storage
•Switching applications and more
•Base transceiver station
•Communication equipments
•Central office
•Telecommunication systems
•Electronic cash registers
•Microprocessor based office machine
•UPS
FEATURES & BENEFITS
High cycle life
6000 cycles @80% DoD for effectively lower total of ownership cost
Longer service life
Low maintenance batteries with stable chemistry.
Built in circuit protection
Battery Management System (BMS) is incorporated against abuse.
Better storage
up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.
Quickly recharge
Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.
Extreme heat tolerance
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.
Lightweight
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
CAUTIONS
•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Store at 30~50% SOC. Recharging every 3 months is recommended. The storage area should be clean, cool, dry and ventilated.
MODELLP16-48100Nominal voltage51.2VNominal Capacity100AhNominal energy5120WhLife Cycles6000 Cycles (25℃, 80% DOD)Recommended Charge Voltage57.6VRecommended Charge Current20.0AEnd of discharge voltage44.0VStandard methodCharge20.0ADischarge50.0AMaximum continuous currentCharge100.0ADischarge100.0ABMS Cut-Off VoltageCharge<58.4 V (3.65V/Cell)Discharge>32.0V (2s) (2.0V/Cell)TemperatureCharge-4 ~ 113 ℉ (0 ~ 45℃ )Discharge-4 ~ 131 ℉ (-20 ~ 55 ℃ )Storage Temperature23~95 ℉ (-5~35℃ )Shipment voltage≥51.2VModule ParallelUp to 4 unitsCommunicationCAN2.0/RS232/RS485Case MaterialSPPCDimension (L x W x H)580 x 400 x 145mm
22.8 x 15.7 x 5.7”Approx. Weight97lbs (44kgs)Charge retention and capacity recovery capabilityStandard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate≥90%, Recovery rate of charge≥90
Description
MUST wall mounted Lithium battery (LiFePO₄ battery) solutions are highly integrated, deep cycle backup power solutions for your solar home energy storage system. With rich experience and advanced techniques, the product has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion.
Features:
- 6000 cycles @80% DoD for effectively lower total of ownership cost;
- Low maintenance batteries with stable chemistry;
- Battery Management System (BMS) is incorporated against abuse;
- up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation;
- Save time and increase productivity with less down time thanks to superior charge/discharge efficiency;
- Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C;
- Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
APPLICATIONS
Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.
Suitable applications include:
•Solar Storage
•Switching applications and more
•Base transceiver station
•Communication equipments
•Central office
•Telecommunication systems
•Electronic cash registers
•Microprocessor based office machine
•UPS
FEATURES & BENEFITS
High cycle life
6000 cycles @80% DoD for effectively lower total of ownership cost
Longer service life
Low maintenance batteries with stable chemistry.
Built in circuit protection
Battery Management System (BMS) is incorporated against abuse.
Better storage
up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.
Quickly recharge
Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.
Extreme heat tolerance
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.
Lightweight
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
CAUTIONS
•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Store at 30~50% SOC. Recharging every 3 months is recommended. The storage area should be clean, cool, dry and ventilated.
MODELLP16-48100Nominal voltage51.2VNominal Capacity100AhNominal energy5120WhLife Cycles6000 Cycles (25℃, 80% DOD)Recommended Charge Voltage57.6VRecommended Charge Current20.0AEnd of discharge voltage44.0VStandard methodCharge20.0ADischarge50.0AMaximum continuous currentCharge100.0ADischarge100.0ABMS Cut-Off VoltageCharge<58.4 V (3.65V/Cell)Discharge>32.0V (2s) (2.0V/Cell)TemperatureCharge-4 ~ 113 ℉ (0 ~ 45℃ )Discharge-4 ~ 131 ℉ (-20 ~ 55 ℃ )Storage Temperature23~95 ℉ (-5~35℃ )Shipment voltage≥51.2VModule ParallelUp to 4 unitsCommunicationCAN2.0/RS232/RS485Case MaterialSPPCDimension (L x W x H)580 x 400 x 145mm
22.8 x 15.7 x 5.7”Approx. Weight97lbs (44kgs)Charge retention and capacity recovery capabilityStandard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate≥90%, Recovery rate of charge≥90
